BRIGGS & STRATTON 23 Gross HP* V-Twin H/S V-Twin Horizontal

BRIGGS & STRATTON 23 Gross HP* V-Twin H/S V-Twin Horizontal

V-Twin OHV Technology

Superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight

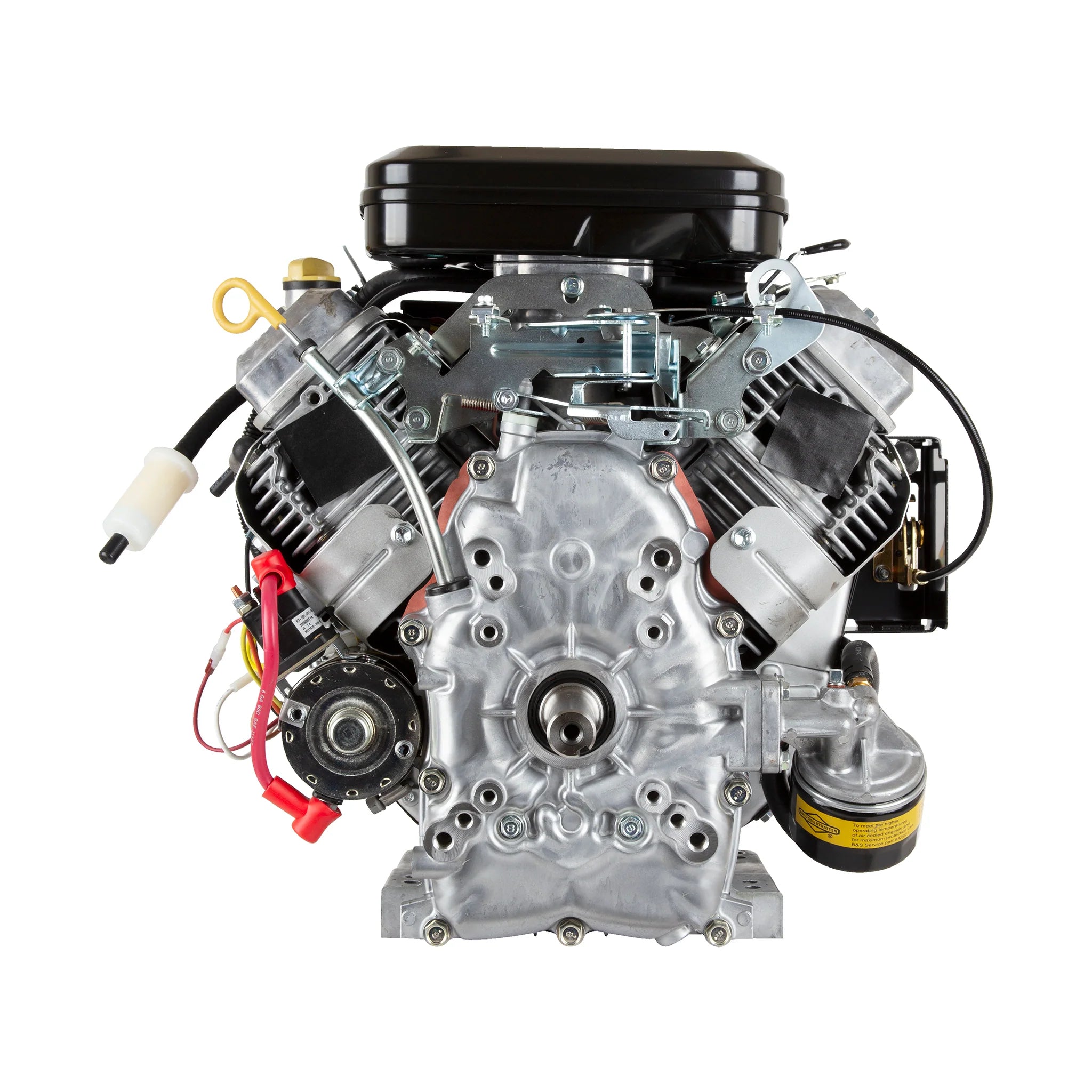

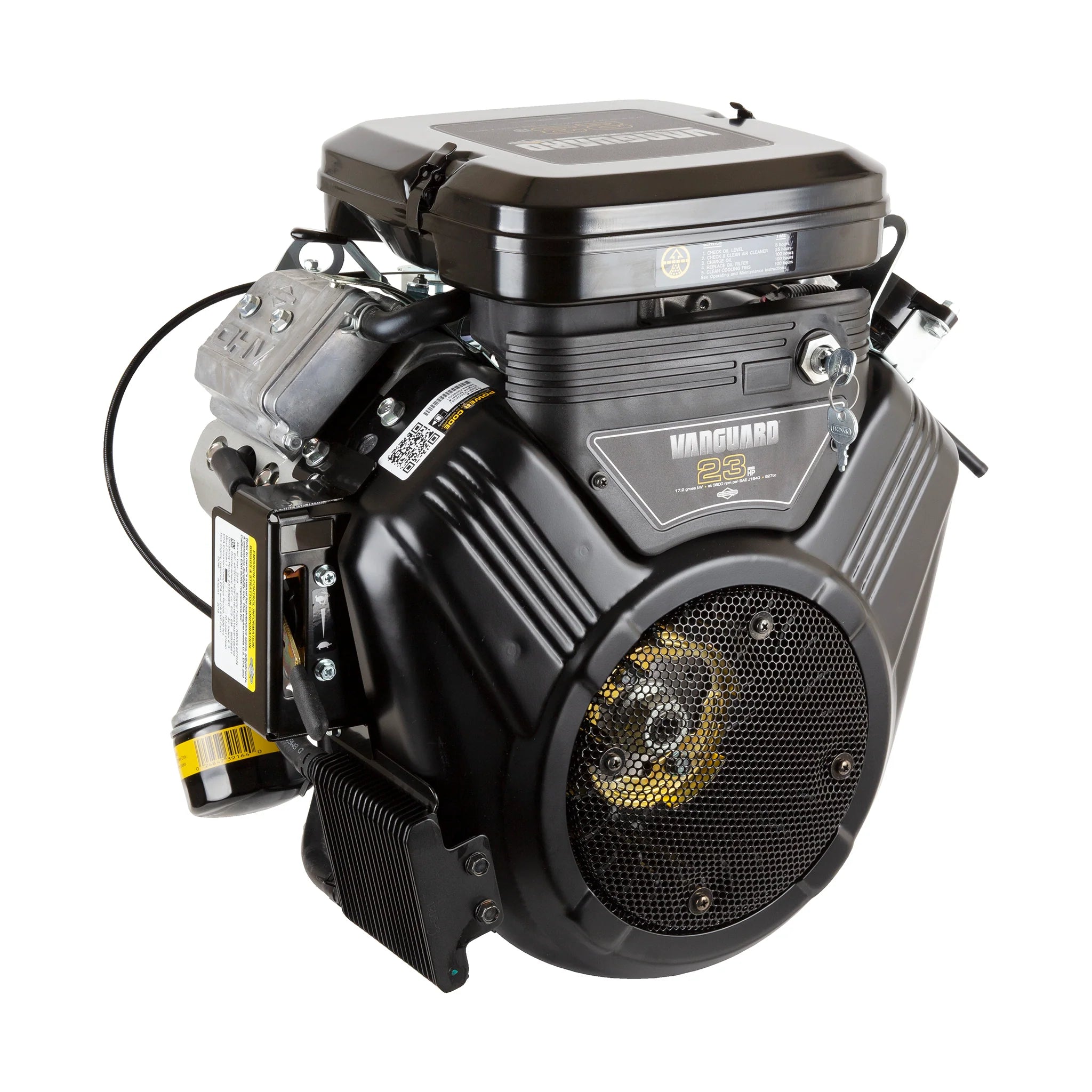

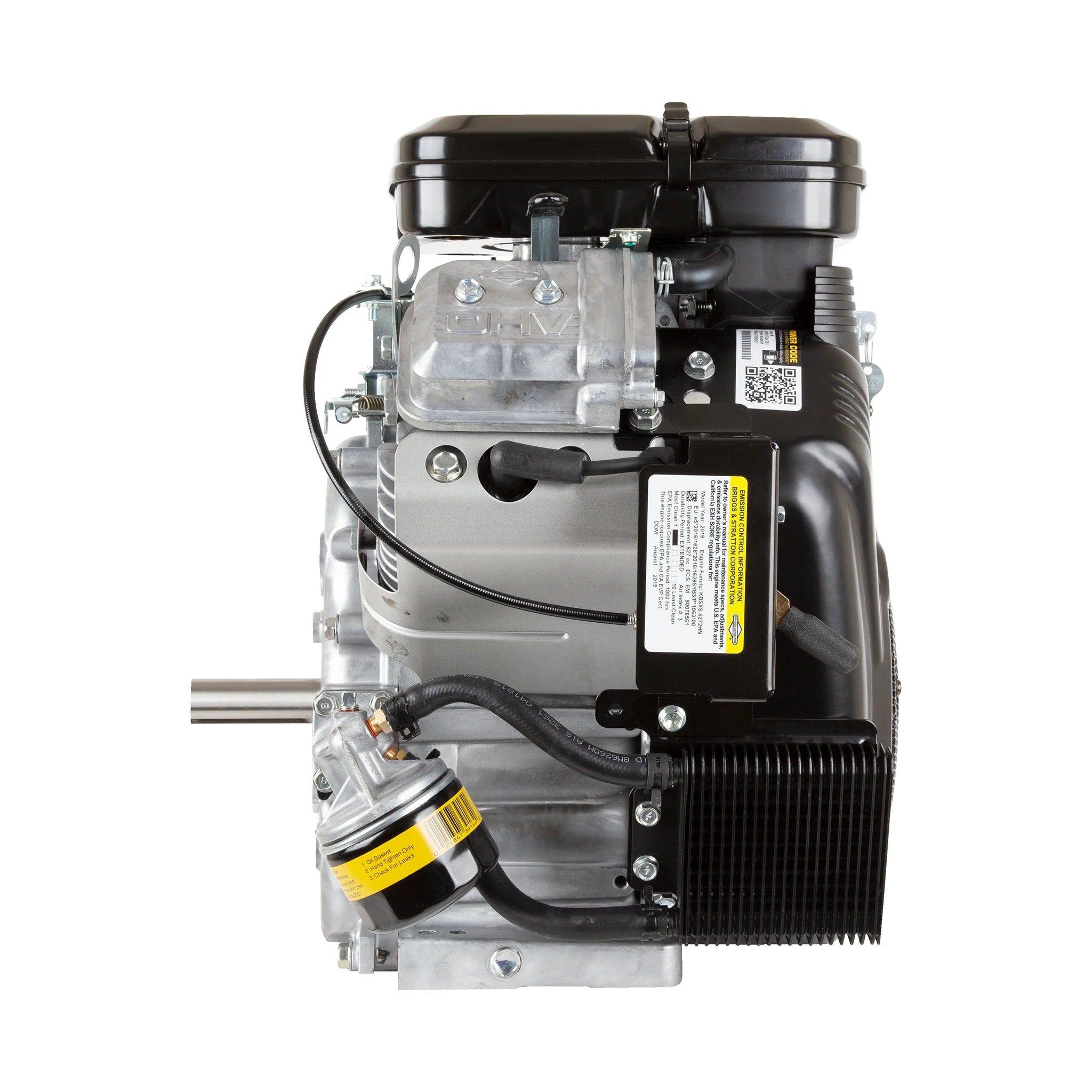

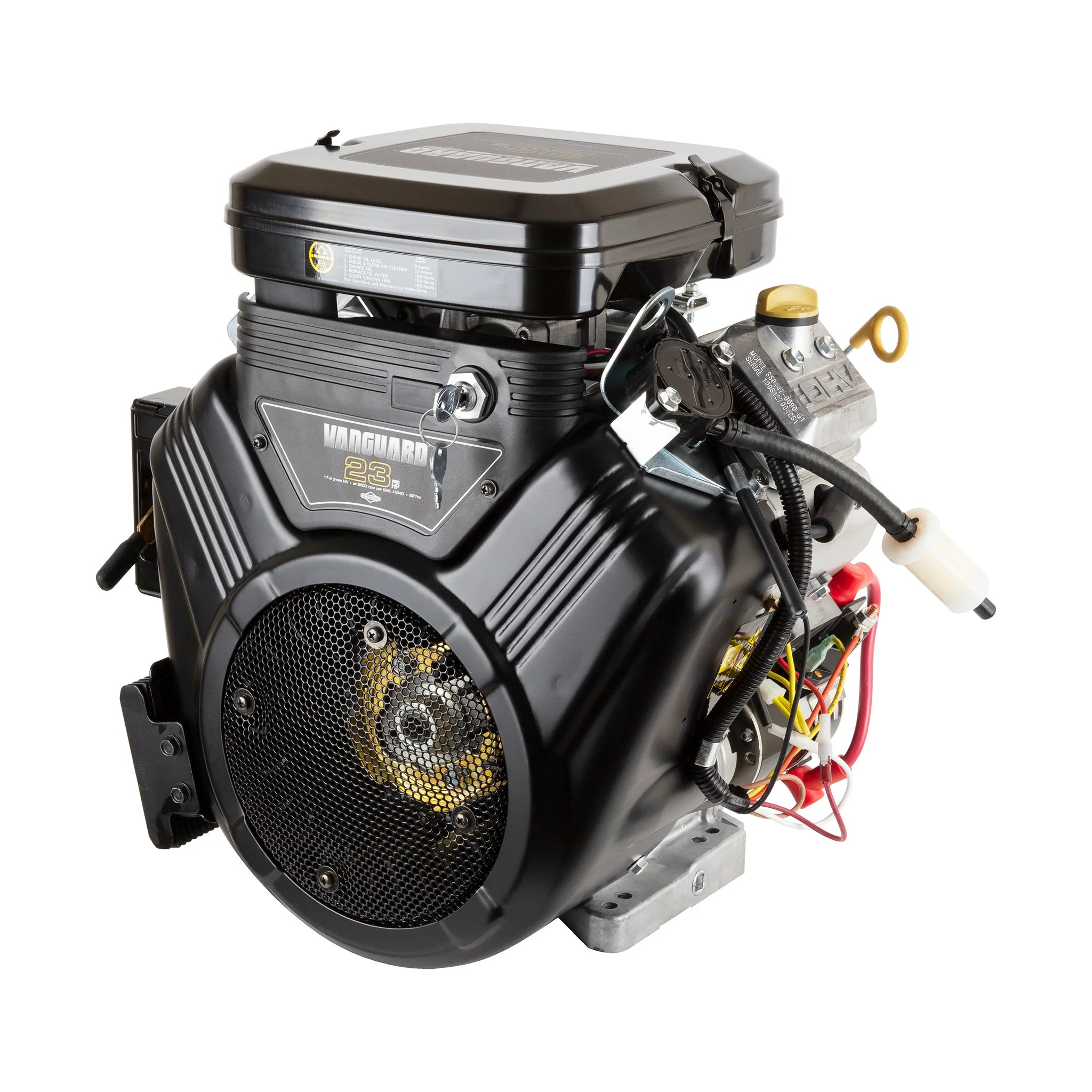

Ever popular Briggs & Stratton 23hp OHV Vanguard Japanese built Industrial Cylinder engine features:

Modern OHV Design.....Commercial quality

Oil Pump & Oil cooler equipped

Electric Start & Pull Start (not shown in pic)

Heavy Duty Alternator

STD oil filter side exhaust included in the price....other price options available

STD Base& PTO Face Mounts...1" parallel shaft 1/4" square keyway....fits up to all 12.5 - 21 hp Vanguard mounts from 19901

BEST VALUE MEDIUM HP TWIN IN AUSTRALIA....try us for all Vanguard BIG BLOCKS 27-35hp



Gross Horsepower: 23

Engine Displacement (cc):  627 (38.26 cu in)

  • Alternator (16, 20, 20-25)
  • Solenoid Shift Starter
  • Heavy Duty Starter
  • Key Switch (H/S Only)
  • Tapered Crankshaft (H/S Only)
  • Threaded Crankshaft (H/S Only)
  • Straight Key Crankshaft (1 in, 1.125 in)
  • Oil Pressure Switch
  • Speed Sensor (H/S Only)
  • Cyclonic Air Cleaner
  • High, Low and Side Mount Mufflers
  • CARB Compliant Purge Ports
  • New Idle Down (H/S Only)

*All power levels are stated horsepower per SAE J1940 as rated by Briggs & Stratton.
