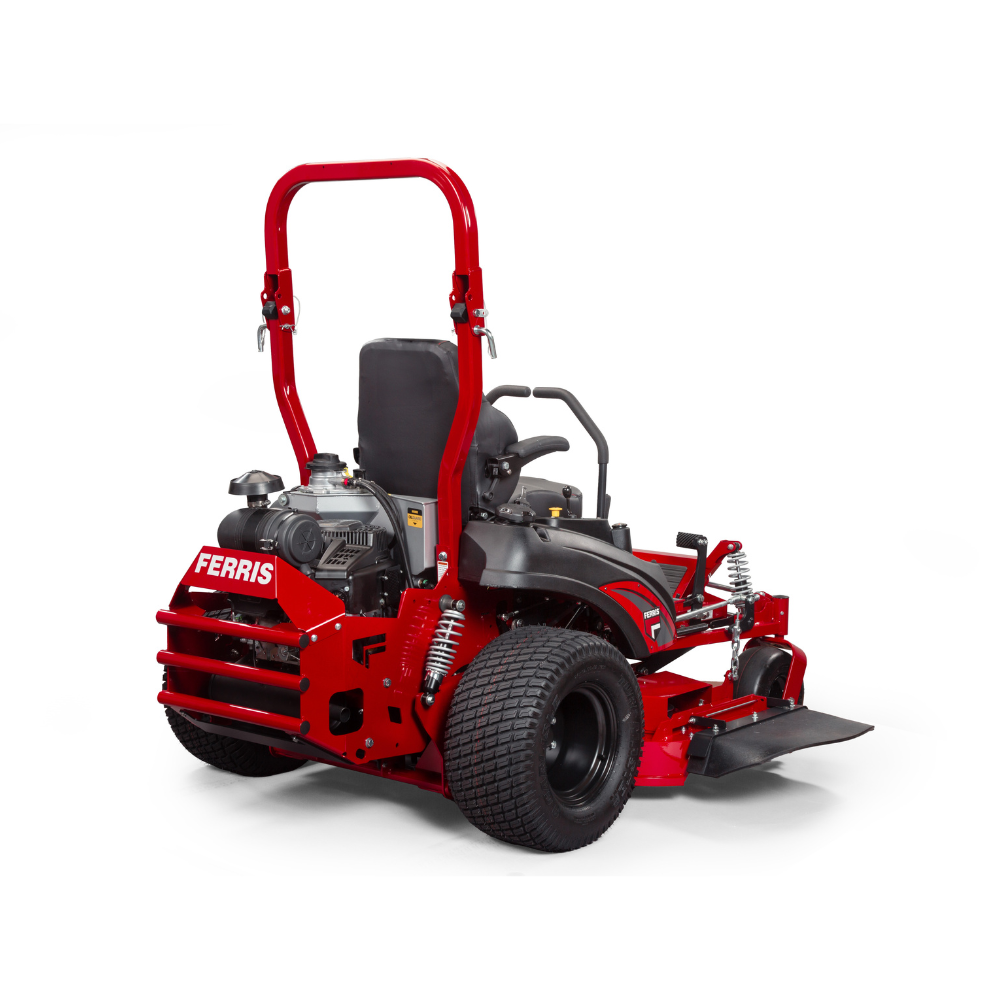

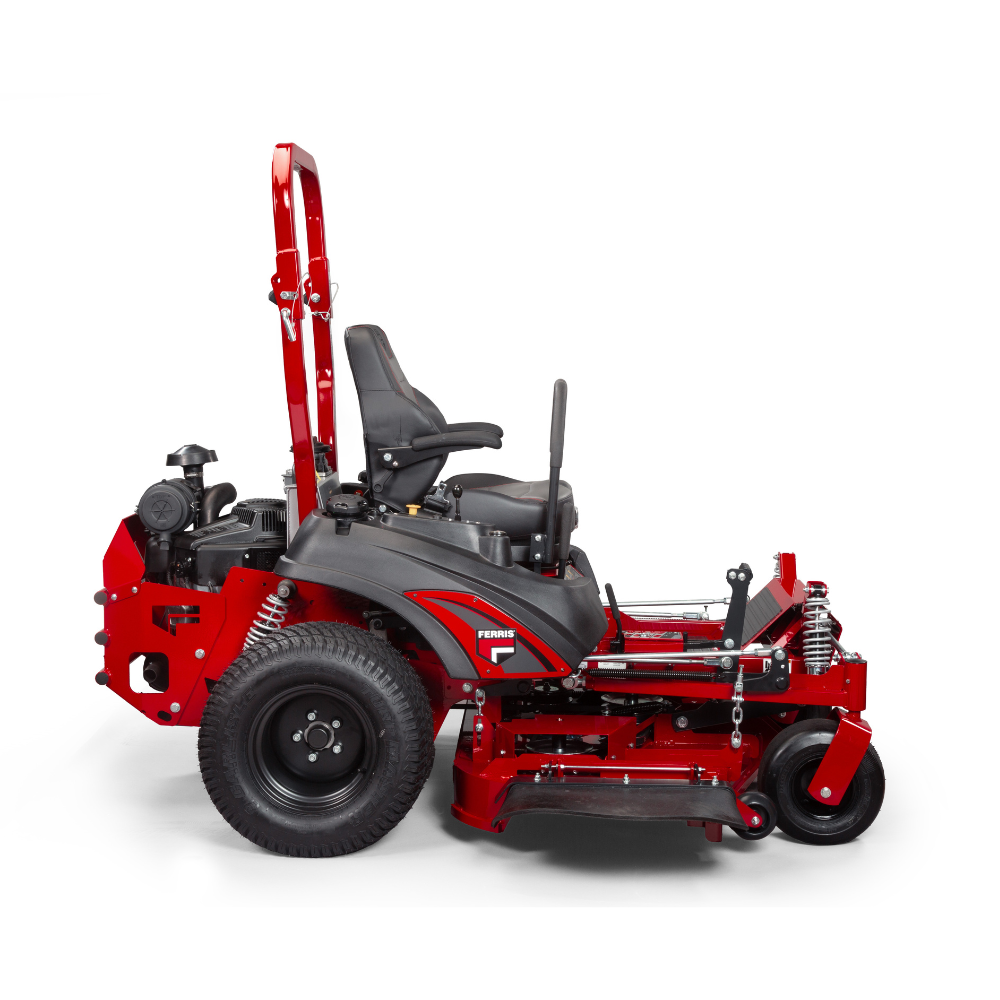

ISX™ 2200

ISX™ 2200

US Flag Manufactured in United States
Regular price$24,999.00
/

Tough turf suspension technology. Take productivity and comfort up a notch with the ISX™ 2200. Boasting Ferris' most advanced ForeFront™ Suspension Technology, a 2-belt, 61" iCD™ Cutting System and heavy-duty Hydro-Gear® transaxles, it's a force to be reckoned with.

TOP FEATURES
  • ForeFront™ Suspension System

  • Oil Guard™ System for extended oil interchange periods

  • Premium, fully-adjustable high-back suspension seat with armrests

FEATURES

REVOLUTIONISING TURF SUSPENSION TECHNOLOGY.

Engine
Vanguard Big Block™ engine for ultimate reliability
ForeFront™ Suspension System
Utilises four upper and lower control rods that ensure front caster bearings remain vertical through the full range of travel. For a smoother ride, more precise tracing of the terrain and an improved cut
Premium suspension seat
Premium high-back suspension seat with armrests, adjustable lumbar and back recline
500 hour oil interchange
Vanguard™ Engines with Oil Guard™ System reduce maintenance time and costs by up to 60%.**
Easy access
Quick-release latches allow for easy access to engine compartment
Integrated transaxles
Dual-commercial transaxles with 8.3" cooling fans to repel debris
Adjustable Cut Height
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".
Spindles
Cast-aluminium greaseable spindles with top access grease fittings and pressure relief valve
Operator convenience
Ergonomic riding mower control panel features cup-holder and fuel gauge
Rear bumper
Heavy-duty bumper protects the engine while also allowing for easy service access
Exceptional performance
The well-tuned steering system delivers smooth and confident operation for excellent performance time after time

SPECS

Model
5901927
Engine
Vanguard® 810cc EFI with Oil Guard™
Engine Power Rating (HP) *
28
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (L)
41.6
Cutting Width in(cm)
61 (155)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
Spindles
Cast-iron greaseable
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks.
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Drive Axles (in)
1.375
Caster Tyres (in)
13 x 6.5 - 6
Drive Tyres (in)
24 x 12 - 12
Ground Speed-Fwd (kph)
0 - 16.1
Ground Speed-Rev (kph)
0 - 8.1
Overall Length (mm)
2096
Overall Width (mm) Deflector Down / Up
1982 / 1563
Dry Weight (kg)
634
Seat Package
Premium high-back Suspension Seat with arm rests, adjustable lumbar and back recline.
Instrumentation
Dual-function hour meter, fuel level gauge in each tank
ROPS
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
