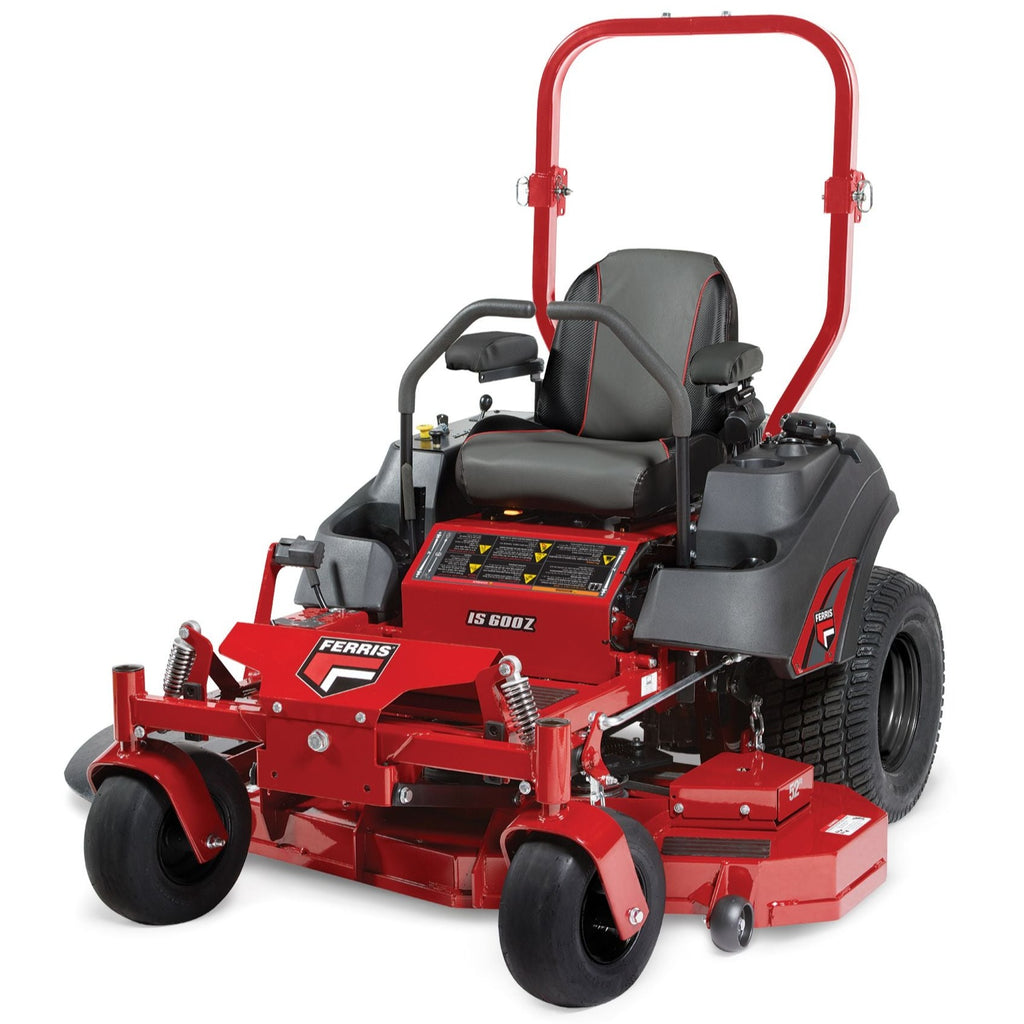

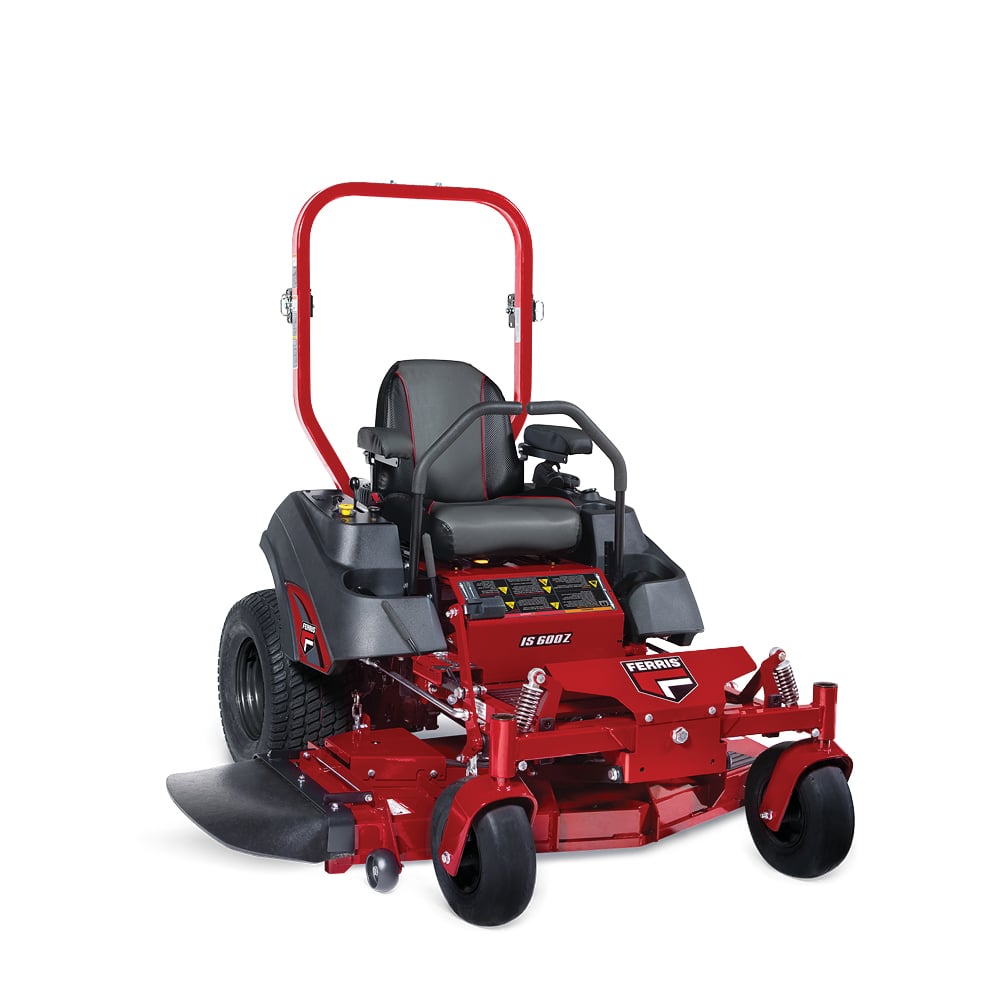

IS® 600Z

IS® 600Z

US Flag Manufactured in United States
Regular price$16,749.00
/
The ultimate value in a compact zero-turn mower. The IS® 600Z is unmatched with its patented suspension system technology, a robust Hydro-Gear® drive system, and speeds up to 16 kmh. Delivering everything you need and more, tackle tight spaces and large areas with ease, ensuring top-notch manoeuvrability and productivity.
TOP FEATURES
  • Briggs & Stratton® Commercial Series engine
  • Cutting height up 4.5" with a 48" path
  • Pivoting front axel and shocks all-round for added comfort

FEATURES

COMFORTABLE. COMPACT. CONVENIENT.

Engine
Briggs & Stratton®Commercial Series engine for extreme conditions. Advanced debris management system and sturdy cylinder block structure
Patented suspension system
Pivoting front axle and all-round shocks allow the wheels to follow the ground and improve comfort in a wide variety of conditions
Deck
10 gauge fully-fabricated steel, side discharge cutter deck for maximum efficiency every time
Integrated transmissions
Commercial Hydro-Gear® ZT-3200® transaxles designed for high performance
Exceptional performance
Well-tuned steering system delivers smooth and confident operation for excellent performance time after time
Easy access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service
Operator convenience
Ergonomic riding mower control panel features cup-holder and fuel gauge
Cut height
Foot-operated deck lift, with adjustable pedal. Adjustable cut height in 1/4" increments from 1.5"- 4.5"
Mower spindles
Cast-aluminium greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve
Rear bumper
Heavy-duty bumper protects the engine while also allowing for easy service access.

SPECS

Model
5901915
Engine
Briggs & Stratton® Commercial Series
Engine Power Rating (HP) *
25
Displacement (cc)
724
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (L)
20.8
Cutting Width in(cm)
48 (122)
Cutting Height in(cm)
1.5 - 4.5 (38 - 144)
Spindles
Aluminium greaseable
Deck Construction
10-gauge, fabricated
Deck Discharge Type
Side Discharge
Suspension
Adjustable front and rear coil-over-shocks with pivoting front axle and a rear swing-arm with large adjustable coil-over-shocks
Transmission
Dual commercial Hydro-Gear® Integrated ZT-3200™ transaxles with 7" cooling fans
Ground Speed-Fwd (kph)
0 - 16.1
Ground Speed-Rev (kph)
0 - 8.1
Dry Weight (kg)
428
Seat Package
Mid-back seat with arm rests
Instrumentation
Dual-function hour meter, fuel level gauge in tank
ROPS
Standard, foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand-operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
