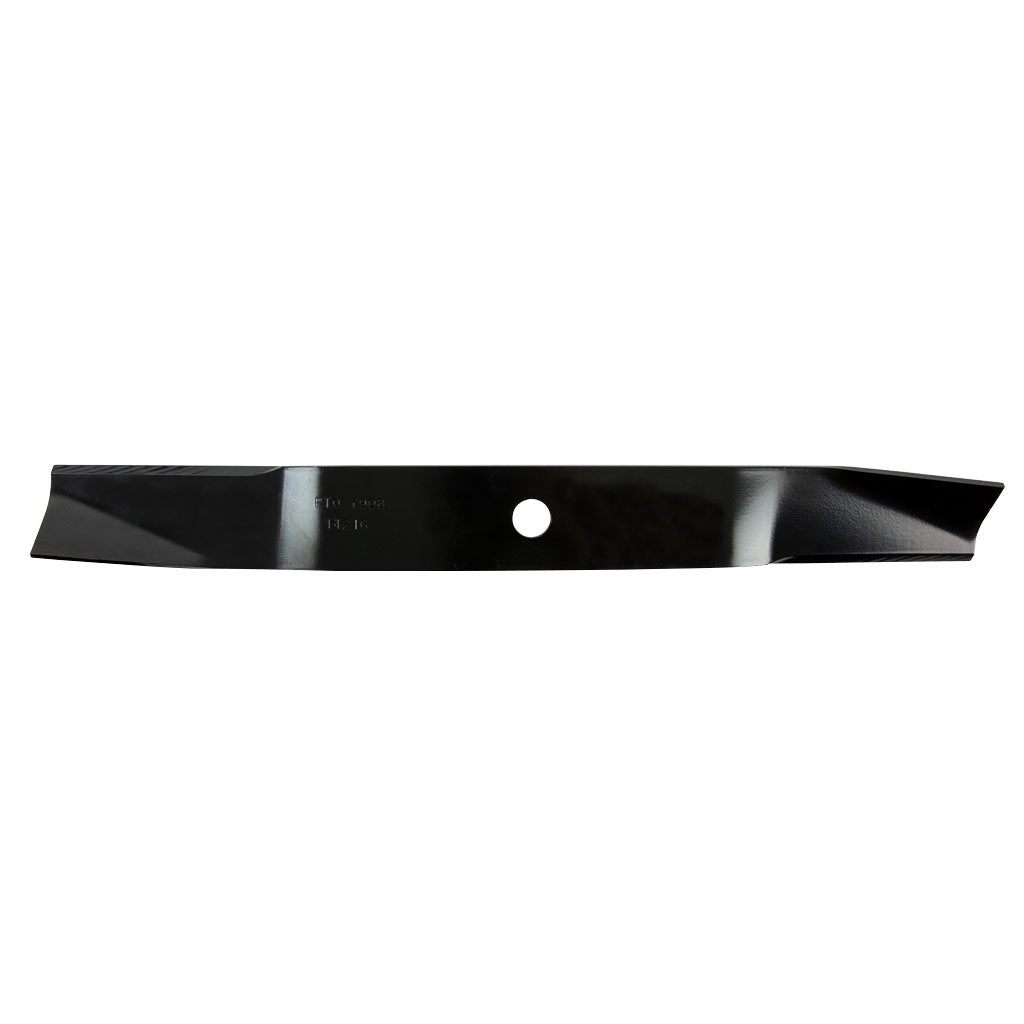

Murray/Victa/Simplicity/Snapper/Craftsman BLR8368/CR28006/MT175420H/V125/NXT19542 21 3/16" Bar Blade 2 X 42" Cut 1737816, 28006
Replaces OEM: Craftsman: 1737816, 1737816BM, 1737816BMA, 1737816BMYP, Murray: 1737816, 1737816BM, 1737816BMA, 1737816BMYP, Parklander: 1737816, 1737816BM, 1737816BMA, 1737816BMYP, Simplicity: 1737816, 1737816BM, 1737816BMA, 1737816BMYP, Snapper: 1737816, 1737816BM, 1737816BMA, 1737816BMYP, Victa: 1737816, 1737816BM, 1737816BMA, 1737816BMYP
Standard Pack: 1
Suits models:
- 42" (1067 mm) Cut Craftsman CR28006 (model 28006, years 2011 - 2012) zero turn, radius (ZTR) ride-on lawn mower models.
- 42" (1067 mm) Cut Murray MT175420H (17.5 hp model 2691000, fitted with deck number 1696084, year 2012) ride-on lawn mower models.
- 42" (1067 mm) Cut Parklander (by Murray) MT175420H (17.5 hp model 2691000, fitted, with deck number 1696084, year 2012) ride-on lawn mower models.
- 42" (1067 mm) Cut Simplicity selected ride-on lawn mower models.
- 42" (1067 mm) Cut Snapper selected ride-on lawn mower models.
- 42" (1067 mm) Cut pressed deck Victa LT 19.5/42 [V125] (19.5 hp model 2691005, fitted with deck number 1696085, years 2012 to 2013, Note: after serial number 2014915223. Please note: there is more than one blade used on these models. These models can be identified as having the spindle housing mounted on top of the deck)
- NXT 19.5/42 [NXT19542, VXT19542] (19.5 hp model 2690919 fitted with deck number 1695927, years 2010 to 2014)
- SPX 20/42 [SPX2042] (20 hp models 2691152, 2691152-00, 2691152-01 and 2691152-02, year 2013)
- SPX 22/42 [SPX2242] (22 hp model, 2691236-00, year 2014)
- SPX 23/42 [SPX2342] (23 hp model 2691235-00, year 2014)
- V125 [LT 19.5/42] (19.5 hp model 2691005, fitted with deck number 1696085, years 2012 to 2013, Note: after serial number 2014915223)
- V125 [23 /42] (23 hp model, 2690917-01 Note: after serial number 2014915223 Please note: there is more than one blade used on these models, both of these V125 models can be identified as having the spindle housing mounted on top of the deck)
- VZ285, [21 /42, ZTR285, 285ZTR] (21 hp model 7800823, years 2011 to 2013)
- VZT 20/42, [VZT2042] (20 hp models 2691155 and 2691155-00, years 2013, 2014)
- VZT 22/42, [VZT2242] (22 hp models 2691379-00 and 2691379-01) zero turn radius (ZTR) ride-on models.
Specifications:
- Centre Hole Dia. (inches): .802"
- Centre Hole Dia. (mm): 20.37 mm
- Deck (inches): 42"
- Deck (mm): 1067 mm
- Deck (cm): 106 cm
- Length: (in): 21 3/16"
- Length: (mm): 538.16 mm
- Thickness: (inches): .170"
- Thickness: (mm): 4.318 mm
- Width: (inches): 2 1/4"
- Width: (mm): 57.15 mm
- Centre Hole Type: Round
- Qty required per unit: 2 blades required for 42" cut
