Walbro WT-942-1/WT-943-1/WT-944-1/WT-946-1/WT-947 Spiral Metering Diaphragm Upgrade Kit K1-WYTA, K6-WYTA

Kit Offer

Walbro/GA WT-942-1/WT-943-1/WT-944-1/WT-946-1/WT-947 Spiral Metering Diaphragm Upgrade Kit K1-WYTA, K6-WYTA

Load image into Gallery viewer, Walbro/GA WT-942-1/WT-943-1/WT-944-1/WT-946-1/WT-947 Spiral Metering Diaphragm Upgrade Kit K1-WYTA, K6-WYTA

$67.57

PRICE BEAT

Hot Deal Kit Offer

Replaces OEM: Walbro K1-WYTA

Standard Pack: 1

Suits models:

WT-942-1
WT-943-1
WT-944-1
WT-946-1
WT-947
WT-948-1
WT-949
WT-951
WT-954
WT-956-1
WT-957
WT-958
WT-959
WT-960
WT-961
WT-962
WT-963
WT-964-1
WT-965
WT-966
WT-967
WT-968-1
WT-969
WT-970-1
WT-971
WT-972
WT-973-1
WT-974
WT-975-1
WT-976
WT-977
WT-978
WT-979
WT-980-1
WT-981-1
WT-982
WT-983
WT-984-1
WT-985-1
WT-986
WT-991-1
WT-992-1
WT-993-1
WT-994
WT-996-1
WT-999
WT-1000
WT-1001
WT-1002
WT-1003
WT-1004
WT-1006
WT-1007
WT-1008-1
WT-1009-1
WT-1010
WT-1011-1
WT-1012-1
WT-1013
WT-1014-1
WT-1015
WT-1016-1
WT-1017-1
WT-1018-1
WT-1019-1
WT-1020-1
WT-1021
WT-1022-1
WT-1023
WT-1024
WT-1025
WT-1026-1
WT-1027-1
WT-1028-1
WT-1030-1
WT-1031-1
WT-1034-1
WT-1036-1
WT-1037-1
WT-1038
WT-1039-1
WT-1041-1
WT-1042-1
WT-1043
WT-1045
WT-1046-1
WT-1047
WT-1048-1
WT-1049-1
WT-1050-1
WT-1051
WT-1053-1
WT-1054
WT-1055-1
WT-1056
WT-1057
WT-1058-1
WT-1059-1
WT-1061-1
WT-1062
WT-1063
WT-1064A
WT-1065
WT-1066-1
WT-1067
WT-1068-1
WT-1069
WT-1070
WT-1071
WT-1072-1
WT-1073
WT-1074
WT-1075
WT-1076
WT-1077
WT-1078
WT-1080
WT-1081
WT-1082
WT-1084-1
WT-1085-1
WT-1086-1
WT-1087
WT-1089-1
WT-1090
WT-1091-1
WT-1092-1
WT-1093-1
WT-1094
WT-1095
WT-1097
WT-1098
WT-1099-1
WT-1100
WT-1102-1
WT-1103
WT-1105
WT-1106
WT-1108-1
WT-1109-1
WT-1110-1
WT-1111-1
WT-1112
WT-1113
WT-1115
WT-1116-1
WT-1117
WT-1118
WT-1119
WT-1120
WT-1121
WT-1122
WT-1123-1
WT-1124
WT-1125-1
WT-1126
WT-1127
WT-1128
WT-1129-1
WT-1130-1
WT-1131-1
WT-1132-1
WT-1133-1
WT-1134
WT-1135
WT-1136
WT-1137
WT-1138-1
WT-1139-1
WT-1141-1
WT-1142
WT-1143-1
WT-1145-1
WT-1147-1
WT-1148-1
WT-1149-1
WT-1150-1
WT-1151-1
WT-1153-1
WT-1154-1
WT-1155-1
WT-1156-1
WT-1157
WT-1158
WT-1159-1
WT-1160-1
WT-1161
WT-1163-1
WT-1164-1
WT-1166
WT-1167
WT-1168-1
WT-1169
WT-1170-1
WT-1172
WT-1174
WT-1178
WT-1179-1
WT-1180-1
WT-1181
WT-1182
WT-1183
WT-1185
WT-1187-1
WT-1188
WT-1189
WT-1192-1
WT-1193
WT-1196
WT-1197
WT-1198
WT-1199
WT-1200
WT-1202
WT-1204
WT-1207
WT-1208
WT-1209-1
WT-1212-1
WT-1213-1
WT-1215-1
WT-1217
WT-1218
WT-1219
WT-1220
WT-1221
WT-1222
WT-1223-1
WT-1224
WT-1225-1
WT-1228
WT-1230
WT-1231
WT-1232
WT-1233
WT-1234
WT-1239
WT-1240
WT-189B
WT-76C
WTA-30-1
WTA-32-1
WTA-33-1
WTA-34
WTA-35-1
WTA-36
WZ-1
WZ-2
WZ-3-1
WZ-4-1
WZ-5-1
WZ-6-1
WZ-7-1
WZ-8-1
WZ-9-1
WZ-10-1
WZ-11-1
WZ-12-1
WZ-13-1
WZ-14-1
WZ-15-1
WZ-16
WZ-16-1
WZ-17-1
WZ-18-1
WZ-19-1
WZ-20-1
WZ-21-1
WZ-22-1
WZ-23-1
WZ-24-1
WZ-25-1
WZ-26-1
WZ-27-1
WZ-28-1
WZ-29-1
WZ-30-1
WZ-31-1
WZ-32
WZ-33-1
WZ-34-1
WZ-35-1
WZ-36-1
WZ-37-1
WZ-38-1
WZ-39-1
WZ-40-1
WZ-41-1
WZ-42-1
WZ-43-1
WZ-44-1
WZ-45-1
WZ-46-1
WZ-47-1
WZ-48
WZ-49
WT-221-1
WT-223-1
WT-224-1
WT-225-1
WT-226-1
WT-229-1
WT-230-1
WT-231-1
WT-232-1
WT-233-1
WT-234-1
WT-235-1
WT-237-1
WT-238-1
WT-241-1
WT-242-1
WT-245-1
WT-246-1
WT-249-1
WT-250-1
WT-251-1
WT-257-1
WT-258-1
WT-260-1
WT-263-1
WT-266-1
WT-267-1
WT-272-1
WT-273-1
WT-274-1
WT-275-1
WT-276-1
WT-277-1
WT-279-1
WT-281-1
WT-282-1
WT-284-1
WT-286-1
WT-287-1
WT-288-1
WT-289-1
WT-290-1
WT-291-1
WT-294-1
WT-295-1
WT-297-1
WT-298-1
WT-300-1
WT-301-1
WT-302-1
WT-303-1
WT-305-1
WT-308-1
WT-309-1
WT-310-1
WT-311-1
WT-312-1
WT-315-1
WT-316
WT-322-1
WT-324-1
WT-327-1
WT-331-1
WT-332-1
WT-333-1
WT-337-1
WT-338-1
WT-339-1
WT-340-1
WT-341-1
WT-344-1
WT-345-1
WT-346-1
WT-347-1
WT-348-1
WT-349-1
WT-350-1
WT-354-1
WT-361-1
WT-363-1
WT-365-1
WT-366-1
WT-367-1
WT-368-1
WT-370-1
WT-372-1
WT-373-1
WT-378-1
WT-380-1
WT-383-1
WT-385-1
WT-387-1
WT-390-1
WT-391-1
WT-394
WT-395
WT-398-1
WT-399-1
WT-400-1
WT-402-1
WT-405-1
WT-406-1
WT-408-1
WT-410-1
WT-411
WT-414-1
WT-415-1
WT-416-1
WT-417-1
WT-418-1
WT-421-1
WT-424-1
WT-426-1
WT-427-1
WT-428-1
WT-429-1
WT-430-1
WT-433-1
WT-434-1
WT-435
WT-436-1
WT-437-1
WT-438-1
WT-439-1
WT-441-1
WT-442-1
WT-446-1
WT-450-1
WT-451-1
WT-453-1
WT-454-1
WT-455-1
WT-456-1
WT-457-1
WT-458-1
WT-460-1
WT-462-1
WT-463-1
WT-465-1
WT-466-1
WT-467-1
WT-470-1
WT-472-1
WT-475-1
WT-477-1
WT-481-1
WT-483
WT-484-1
WT-486-1
WT-487-1
WT-489-1
WT-492-1
WT-494-1
WT-495-1
WT-497-1
WT-499-1
WT-500-1
WT-501-1
WT-504-1
WT-506-1
WT-508-1
WT-509-1
WT-511-1
WT-512-1
WT-513-1
WT-514-1
WT-516-1
WT-517-1
WT-518-1
WT-520-1
WT-525-1
WT-527-1
WT-529-1
WT-530-1
WT-531-1
WT-534-1
WT-535
WT-536-1
WT-538-1
WT-539-1
WT-540-1
WT-542-1
WT-543-1
WT-544-1
WT-545-1
WT-547-1
WT-548-1
WT-549-1
WT-550-1
WT-551-1
WT-552-1
WT-553-1
WT-554
WT-555-1
WT-557-1
WT-558-1
WT-559-1
WT-560-1
WT-561-1
WT-562-1
WT-565-1
WT-566-1
WT-567-1
WT-568-1
WT-569-1
WT-570-1
WT-571-1
WT-572-1
WT-573-1
WT-574-1
WT-575-1
WT-576-1
WT-577-1
WT-578-1
WT-579-1
WT-580-1
WT-582-1
WT-583-1
WT-584-1
WT-586-1
WT-587-1
WT-588-1
WT-589-1
WT-590-1
WT-591-1
WT-592-1
WT-593-1
WT-594-1
WT-595
WT-596-1
WT-597-1
WT-598-1
WT-599-1
WT-600-1
WT-602-1
WT-606-1
WT-607-1
WT-609-1
WT-610-1
WT-611
WT-612-1
WT-614-1
WT-616-1
WT-617-1
WT-618-1
WT-619-1
WT-622-1
WT-624-1
WT-625-1
WT-626-1
WT-627-1
WT-628-1
WT-629-1
WT-630-1
WT-631-1
WT-632-1
WT-634-1
WT-635-1
WT-636-1
WT-637
WT-638-1
WT-639-1
WT-640-1
WT-641-1
WT-642-1
WT-646-1
WT-647-1
WT-648-1
WT-649-1
WT-650-1
WT-652
WT-656-1
WT-657-1
WT-659
WT-660-1
WT-661-1
WT-662-1
WT-664-1
WT-665-1
WT-666-1
WT-667-1
WT-669-1
WT-670-1
WT-671-1
WT-673-1
WT-674-1
WT-675-1
WT-678-1
WT-679-1
WT-680-1
WT-681
WT-682-1
WT-684-1
WT-685-1
WT-686-1
WT-687-1
WT-724-1
WT-688-1
WT-689-1
WT-690-1
WT-691-1
WT-692-1
WT-693-1
WT-695-1
WT-697-1
WT-698-1
WT-699-1
WT-700-1
WT-701-1
WT-702-1
WT-705-1
WT-706-1
WT-707-1
WT-708-1
WT-709-1
WT-710-1
WT-711-1
WT-712-1
WT-713-1
WT-716-1
WT-717-1
WT-718-1
WT-719
WT-720-1
WT-721-1
WT-722-1
WT-725-1
WT-726-1
WT-727-1
WT-728-1
WT-729-1
WT-731-1
WT-732-1
WT-737-1
WT-738-1
WT-739-1
WT-742-1
WT-743-1
WT-745-1
WT-746-1
WT-747-1
WT-748-1
WT-749-1
WT-750-1
WT-751-1
WT-752-1
WT-753-1
WT-754-1
WT-755-1
WT-756-1
WT-757-1
WT-758-1
WT-759-1
WT-760-1
WT-761-1
WT-762-1
WT-763-1
WT-764-1
WT-766-1
WT-767
WT-769-1
WT-772-1
WT-774-1
WT-776-1
WT-777-1
WT-778-1
WT-779-1
WT-780-1
WT-781-1
WT-782-1
WT-783-1
WT-784-1
WT-785-1
WT-786-1
WT-787-1
WT-788-1
WT-789-1
WT-790
WT-791
WT-792-1
WT-793-1
WT-794-1
WT-795-1
WT-796-1
WT-797-1
WT-798-1
WT-799-1
WT-801-1
WT-802-1
WT-803-1
WT-804-1
WT-805-1
WT-807-1
WT-808-1
WT-809
WT-811-1
WT-812-1
WT-814-1
WT-815-1
WT-816-1
WT-817-1
WT-818-1
WT-820-1
WT-823-1
WT-825-1
WT-826-1
WT-827-1
WT-828
WT-829-1
WT-830-1
WT-831-1
WT-832-1
WT-834-1
WT-835-1
WT-836-1
WT-837
WT-838-1
WT-839-1
WT-840-1
WT-841-1
WT-843-1
WT-844-1
WT-845-1
WT-846-1
WT-847-1
WT-850-1
WT-851
WT-852-1
WT-853-1
WT-854
WT-855-1
WT-856-1
WT-857-1
WT-858-1
WT-860-1
WT-861-1
WT-862-1
WT-863-1
WT-864-1
WT-865-1
WT-866-1
WT-867
WT-868
WT-869-1
WT-870-1
WT-871
WT-872-1
WT-873-1
WT-874
WT-875-1
WT-876
WT-877
WT-878-1
WT-879-1
WT-880
WT-881
WT-885
WT-886
WT-887
WT-888
WT-889-1
WT-890
WT-891-1
WT-892
WT-893
WT-895-1
WT-896-1
WT-897-1
WT-898
WT-899-1
WT-900-1
WT-901-1
WT-902-1
WT-903
WT-904
WT-905-1
WT-906-1
WT-907
WT-908-1
WT-909-1
WT-910-1
WT-912
WT-913
WT-914
WT-915-1
WT-916
WT-917-1
WT-918-1
WT-920
WT-921
WT-924-1
WT-925-1
WT-927-1
WT-928
WT-929-1
WT-930-1
WT-931
WT-932-1
WT-933
WT-934-1
WT-935-1
WT-936-1
WT-937-1
WT-938
WT-941-1

Specifications:

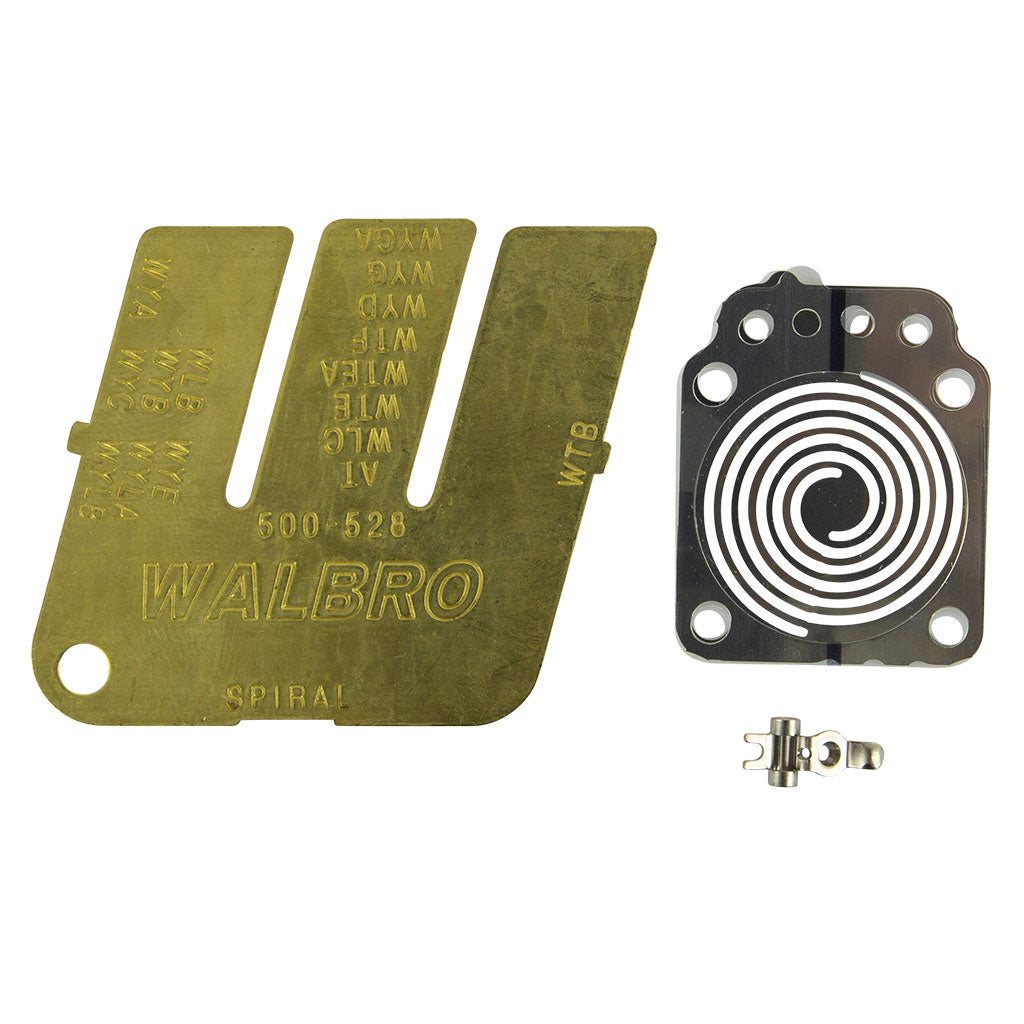

Genuine Walbro K1-WYTA Spiral Metering Diaphragm Upgrade Kit
Converts carburettor from traditional rubber metering diaphragm to Walbro ethanol-compliant spiral metering diaphragm
Spiral metering diaphragm is impervious to the effects of Ethanol and additives in modern fuels and does not deteriorate with age
Includes a brass "W" gauge and a metering lever replacement (except the metering lever pin is reused)
Features a membrane with a high grade teflon film in the centre and a stainless steel spiral diaphragm
Currently over 500 Walbro diaphragm carburettor model numbers can be upgraded to use the new spiral diaphragm kits
All parts (except the metering lever) are contained in a clever installation sleeve to make assembly quicker and easier
Warning: extremely durable inside the carburettor but fragile to handle - DO NOT bend or crease the membrane when handling or during assembly
Fitting instructions: remove metering cover, old diaphragm and gasket; remove metering lever and replace with new one supplied, reusing old metering lever pin; reset metering lever height using included brass "W" gauge (OMK500-528)
Installation sleeve orientation: install onto the two metal pins with the word "TOP" printed on the installation sleeve facing up
Adjustment point on brass gauge is on the bottom; indentation to set lever height is below the word "Spiral"
Footnote: when comparing fitment application info to your carburettor model, disregard all letters (A, B, C) and -1 at the end of your carburettor model number

Quantity

Quantity must be 1 or more

compare

Wishlist

Click & Collect OR In-store Pickup

Free At Our Adelaide Store

Delivery Availability

Express delivery available for certain items!

Country

State/Territory

Postal/Zip Code

Unbeatable savings Guarantee

Get unbeatable savings with our competitive pricing strategy.
Backed by In-House Experts

Armed with decades of combined experience.
Premium Quality Fitment

Top-quality genuine OEM and after-market replacement part fitment.
Australia Wide Delivery

Dedicated to reaching you at all corners of the country.

Unbeatable savings Guarantee

Get unbeatable savings with our competitive pricing strategy.
Backed by In-House Experts

Armed with decades of combined experience.
Premium Quality Fitment

Top-quality genuine OEM and after-market replacement part fitment.
Australia Wide Delivery

Dedicated to reaching you at all corners of the country.

compare

Description

Replaces OEM: Walbro K1-WYTA

Standard Pack: 1

Suits models:

WT-942-1
WT-943-1
WT-944-1
WT-946-1
WT-947
WT-948-1
WT-949
WT-951
WT-954
WT-956-1
WT-957
WT-958
WT-959
WT-960
WT-961
WT-962
WT-963
WT-964-1
WT-965
WT-966
WT-967
WT-968-1
WT-969
WT-970-1
WT-971
WT-972
WT-973-1
WT-974
WT-975-1
WT-976
WT-977
WT-978
WT-979
WT-980-1
WT-981-1
WT-982
WT-983
WT-984-1
WT-985-1
WT-986
WT-991-1
WT-992-1
WT-993-1
WT-994
WT-996-1
WT-999
WT-1000
WT-1001
WT-1002
WT-1003
WT-1004
WT-1006
WT-1007
WT-1008-1
WT-1009-1
WT-1010
WT-1011-1
WT-1012-1
WT-1013
WT-1014-1
WT-1015
WT-1016-1
WT-1017-1
WT-1018-1
WT-1019-1
WT-1020-1
WT-1021
WT-1022-1
WT-1023
WT-1024
WT-1025
WT-1026-1
WT-1027-1
WT-1028-1
WT-1030-1
WT-1031-1
WT-1034-1
WT-1036-1
WT-1037-1
WT-1038
WT-1039-1
WT-1041-1
WT-1042-1
WT-1043
WT-1045
WT-1046-1
WT-1047
WT-1048-1
WT-1049-1
WT-1050-1
WT-1051
WT-1053-1
WT-1054
WT-1055-1
WT-1056
WT-1057
WT-1058-1
WT-1059-1
WT-1061-1
WT-1062
WT-1063
WT-1064A
WT-1065
WT-1066-1
WT-1067
WT-1068-1
WT-1069
WT-1070
WT-1071
WT-1072-1
WT-1073
WT-1074
WT-1075
WT-1076
WT-1077
WT-1078
WT-1080
WT-1081
WT-1082
WT-1084-1
WT-1085-1
WT-1086-1
WT-1087
WT-1089-1
WT-1090
WT-1091-1
WT-1092-1
WT-1093-1
WT-1094
WT-1095
WT-1097
WT-1098
WT-1099-1
WT-1100
WT-1102-1
WT-1103
WT-1105
WT-1106
WT-1108-1
WT-1109-1
WT-1110-1
WT-1111-1
WT-1112
WT-1113
WT-1115
WT-1116-1
WT-1117
WT-1118
WT-1119
WT-1120
WT-1121
WT-1122
WT-1123-1
WT-1124
WT-1125-1
WT-1126
WT-1127
WT-1128
WT-1129-1
WT-1130-1
WT-1131-1
WT-1132-1
WT-1133-1
WT-1134
WT-1135
WT-1136
WT-1137
WT-1138-1
WT-1139-1
WT-1141-1
WT-1142
WT-1143-1
WT-1145-1
WT-1147-1
WT-1148-1
WT-1149-1
WT-1150-1
WT-1151-1
WT-1153-1
WT-1154-1
WT-1155-1
WT-1156-1
WT-1157
WT-1158
WT-1159-1
WT-1160-1
WT-1161
WT-1163-1
WT-1164-1
WT-1166
WT-1167
WT-1168-1
WT-1169
WT-1170-1
WT-1172
WT-1174
WT-1178
WT-1179-1
WT-1180-1
WT-1181
WT-1182
WT-1183
WT-1185
WT-1187-1
WT-1188
WT-1189
WT-1192-1
WT-1193
WT-1196
WT-1197
WT-1198
WT-1199
WT-1200
WT-1202
WT-1204
WT-1207
WT-1208
WT-1209-1
WT-1212-1
WT-1213-1
WT-1215-1
WT-1217
WT-1218
WT-1219
WT-1220
WT-1221
WT-1222
WT-1223-1
WT-1224
WT-1225-1
WT-1228
WT-1230
WT-1231
WT-1232
WT-1233
WT-1234
WT-1239
WT-1240
WT-189B
WT-76C
WTA-30-1
WTA-32-1
WTA-33-1
WTA-34
WTA-35-1
WTA-36
WZ-1
WZ-2
WZ-3-1
WZ-4-1
WZ-5-1
WZ-6-1
WZ-7-1
WZ-8-1
WZ-9-1
WZ-10-1
WZ-11-1
WZ-12-1
WZ-13-1
WZ-14-1
WZ-15-1
WZ-16
WZ-16-1
WZ-17-1
WZ-18-1
WZ-19-1
WZ-20-1
WZ-21-1
WZ-22-1
WZ-23-1
WZ-24-1
WZ-25-1
WZ-26-1
WZ-27-1
WZ-28-1
WZ-29-1
WZ-30-1
WZ-31-1
WZ-32
WZ-33-1
WZ-34-1
WZ-35-1
WZ-36-1
WZ-37-1
WZ-38-1
WZ-39-1
WZ-40-1
WZ-41-1
WZ-42-1
WZ-43-1
WZ-44-1
WZ-45-1
WZ-46-1
WZ-47-1
WZ-48
WZ-49
WT-221-1
WT-223-1
WT-224-1
WT-225-1
WT-226-1
WT-229-1
WT-230-1
WT-231-1
WT-232-1
WT-233-1
WT-234-1
WT-235-1
WT-237-1
WT-238-1
WT-241-1
WT-242-1
WT-245-1
WT-246-1
WT-249-1
WT-250-1
WT-251-1
WT-257-1
WT-258-1
WT-260-1
WT-263-1
WT-266-1
WT-267-1
WT-272-1
WT-273-1
WT-274-1
WT-275-1
WT-276-1
WT-277-1
WT-279-1
WT-281-1
WT-282-1
WT-284-1
WT-286-1
WT-287-1
WT-288-1
WT-289-1
WT-290-1
WT-291-1
WT-294-1
WT-295-1
WT-297-1
WT-298-1
WT-300-1
WT-301-1
WT-302-1
WT-303-1
WT-305-1
WT-308-1
WT-309-1
WT-310-1
WT-311-1
WT-312-1
WT-315-1
WT-316
WT-322-1
WT-324-1
WT-327-1
WT-331-1
WT-332-1
WT-333-1
WT-337-1
WT-338-1
WT-339-1
WT-340-1
WT-341-1
WT-344-1
WT-345-1
WT-346-1
WT-347-1
WT-348-1
WT-349-1
WT-350-1
WT-354-1
WT-361-1
WT-363-1
WT-365-1
WT-366-1
WT-367-1
WT-368-1
WT-370-1
WT-372-1
WT-373-1
WT-378-1
WT-380-1
WT-383-1
WT-385-1
WT-387-1
WT-390-1
WT-391-1
WT-394
WT-395
WT-398-1
WT-399-1
WT-400-1
WT-402-1
WT-405-1
WT-406-1
WT-408-1
WT-410-1
WT-411
WT-414-1
WT-415-1
WT-416-1
WT-417-1
WT-418-1
WT-421-1
WT-424-1
WT-426-1
WT-427-1
WT-428-1
WT-429-1
WT-430-1
WT-433-1
WT-434-1
WT-435
WT-436-1
WT-437-1
WT-438-1
WT-439-1
WT-441-1
WT-442-1
WT-446-1
WT-450-1
WT-451-1
WT-453-1
WT-454-1
WT-455-1
WT-456-1
WT-457-1
WT-458-1
WT-460-1
WT-462-1
WT-463-1
WT-465-1
WT-466-1
WT-467-1
WT-470-1
WT-472-1
WT-475-1
WT-477-1
WT-481-1
WT-483
WT-484-1
WT-486-1
WT-487-1
WT-489-1
WT-492-1
WT-494-1
WT-495-1
WT-497-1
WT-499-1
WT-500-1
WT-501-1
WT-504-1
WT-506-1
WT-508-1
WT-509-1
WT-511-1
WT-512-1
WT-513-1
WT-514-1
WT-516-1
WT-517-1
WT-518-1
WT-520-1
WT-525-1
WT-527-1
WT-529-1
WT-530-1
WT-531-1
WT-534-1
WT-535
WT-536-1
WT-538-1
WT-539-1
WT-540-1
WT-542-1
WT-543-1
WT-544-1
WT-545-1
WT-547-1
WT-548-1
WT-549-1
WT-550-1
WT-551-1
WT-552-1
WT-553-1
WT-554
WT-555-1
WT-557-1
WT-558-1
WT-559-1
WT-560-1
WT-561-1
WT-562-1
WT-565-1
WT-566-1
WT-567-1
WT-568-1
WT-569-1
WT-570-1
WT-571-1
WT-572-1
WT-573-1
WT-574-1
WT-575-1
WT-576-1
WT-577-1
WT-578-1
WT-579-1
WT-580-1
WT-582-1
WT-583-1
WT-584-1
WT-586-1
WT-587-1
WT-588-1
WT-589-1
WT-590-1
WT-591-1
WT-592-1
WT-593-1
WT-594-1
WT-595
WT-596-1
WT-597-1
WT-598-1
WT-599-1
WT-600-1
WT-602-1
WT-606-1
WT-607-1
WT-609-1
WT-610-1
WT-611
WT-612-1
WT-614-1
WT-616-1
WT-617-1
WT-618-1
WT-619-1
WT-622-1
WT-624-1
WT-625-1
WT-626-1
WT-627-1
WT-628-1
WT-629-1
WT-630-1
WT-631-1
WT-632-1
WT-634-1
WT-635-1
WT-636-1
WT-637
WT-638-1
WT-639-1
WT-640-1
WT-641-1
WT-642-1
WT-646-1
WT-647-1
WT-648-1
WT-649-1
WT-650-1
WT-652
WT-656-1
WT-657-1
WT-659
WT-660-1
WT-661-1
WT-662-1
WT-664-1
WT-665-1
WT-666-1
WT-667-1
WT-669-1
WT-670-1
WT-671-1
WT-673-1
WT-674-1
WT-675-1
WT-678-1
WT-679-1
WT-680-1
WT-681
WT-682-1
WT-684-1
WT-685-1
WT-686-1
WT-687-1
WT-724-1
WT-688-1
WT-689-1
WT-690-1
WT-691-1
WT-692-1
WT-693-1
WT-695-1
WT-697-1
WT-698-1
WT-699-1
WT-700-1
WT-701-1
WT-702-1
WT-705-1
WT-706-1
WT-707-1
WT-708-1
WT-709-1
WT-710-1
WT-711-1
WT-712-1
WT-713-1
WT-716-1
WT-717-1
WT-718-1
WT-719
WT-720-1
WT-721-1
WT-722-1
WT-725-1
WT-726-1
WT-727-1
WT-728-1
WT-729-1
WT-731-1
WT-732-1
WT-737-1
WT-738-1
WT-739-1
WT-742-1
WT-743-1
WT-745-1
WT-746-1
WT-747-1
WT-748-1
WT-749-1
WT-750-1
WT-751-1
WT-752-1
WT-753-1
WT-754-1
WT-755-1
WT-756-1
WT-757-1
WT-758-1
WT-759-1
WT-760-1
WT-761-1
WT-762-1
WT-763-1
WT-764-1
WT-766-1
WT-767
WT-769-1
WT-772-1
WT-774-1
WT-776-1
WT-777-1
WT-778-1
WT-779-1
WT-780-1
WT-781-1
WT-782-1
WT-783-1
WT-784-1
WT-785-1
WT-786-1
WT-787-1
WT-788-1
WT-789-1
WT-790
WT-791
WT-792-1
WT-793-1
WT-794-1
WT-795-1
WT-796-1
WT-797-1
WT-798-1
WT-799-1
WT-801-1
WT-802-1
WT-803-1
WT-804-1
WT-805-1
WT-807-1
WT-808-1
WT-809
WT-811-1
WT-812-1
WT-814-1
WT-815-1
WT-816-1
WT-817-1
WT-818-1
WT-820-1
WT-823-1
WT-825-1
WT-826-1
WT-827-1
WT-828
WT-829-1
WT-830-1
WT-831-1
WT-832-1
WT-834-1
WT-835-1
WT-836-1
WT-837
WT-838-1
WT-839-1
WT-840-1
WT-841-1
WT-843-1
WT-844-1
WT-845-1
WT-846-1
WT-847-1
WT-850-1
WT-851
WT-852-1
WT-853-1
WT-854
WT-855-1
WT-856-1
WT-857-1
WT-858-1
WT-860-1
WT-861-1
WT-862-1
WT-863-1
WT-864-1
WT-865-1
WT-866-1
WT-867
WT-868
WT-869-1
WT-870-1
WT-871
WT-872-1
WT-873-1
WT-874
WT-875-1
WT-876
WT-877
WT-878-1
WT-879-1
WT-880
WT-881
WT-885
WT-886
WT-887
WT-888
WT-889-1
WT-890
WT-891-1
WT-892
WT-893
WT-895-1
WT-896-1
WT-897-1
WT-898
WT-899-1
WT-900-1
WT-901-1
WT-902-1
WT-903
WT-904
WT-905-1
WT-906-1
WT-907
WT-908-1
WT-909-1
WT-910-1
WT-912
WT-913
WT-914
WT-915-1
WT-916
WT-917-1
WT-918-1
WT-920
WT-921
WT-924-1
WT-925-1
WT-927-1
WT-928
WT-929-1
WT-930-1
WT-931
WT-932-1
WT-933
WT-934-1
WT-935-1
WT-936-1
WT-937-1
WT-938
WT-941-1

Specifications:

Genuine Walbro K1-WYTA Spiral Metering Diaphragm Upgrade Kit
Converts carburettor from traditional rubber metering diaphragm to Walbro ethanol-compliant spiral metering diaphragm
Spiral metering diaphragm is impervious to the effects of Ethanol and additives in modern fuels and does not deteriorate with age
Includes a brass "W" gauge and a metering lever replacement (except the metering lever pin is reused)
Features a membrane with a high grade teflon film in the centre and a stainless steel spiral diaphragm
Currently over 500 Walbro diaphragm carburettor model numbers can be upgraded to use the new spiral diaphragm kits
All parts (except the metering lever) are contained in a clever installation sleeve to make assembly quicker and easier
Warning: extremely durable inside the carburettor but fragile to handle - DO NOT bend or crease the membrane when handling or during assembly
Fitting instructions: remove metering cover, old diaphragm and gasket; remove metering lever and replace with new one supplied, reusing old metering lever pin; reset metering lever height using included brass "W" gauge (OMK500-528)
Installation sleeve orientation: install onto the two metal pins with the word "TOP" printed on the installation sleeve facing up
Adjustment point on brass gauge is on the bottom; indentation to set lever height is below the word "Spiral"
Footnote: when comparing fitment application info to your carburettor model, disregard all letters (A, B, C) and -1 at the end of your carburettor model number

Shipping + Returns

We reserve the right to change specifications, features and pricing without notice. Products may vary from images shown.* Power levels rated by engine manufacturer. See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Shipping

PowerMowers Australia proudly offers a comprehensive range of whole good products and parts brand catalogs for your browsing and ordering convenience. While we strive to maintain a robust inventory, please note that not all parts listed may be readily available in our warehouse. Whilst we prioritise transparency, it's important to understand that there might be delays in fulfilling your order due to various reasons, such as sourcing products from relevant suppliers or overseas manufacturers. We aim to assure you that we'll keep you informed every step of the way.

If an item is not readily available or must be sourced externally, rest assured that attempt will be made to communicate promptly with you. We aim to provide accurate shipping times, and you'll be notified if your order is expected to take longer than 15 business days to reach you. Your satisfaction is paramount to us. If you have any concerns about item availability, shipping times, or any questions regarding your order, please don't hesitate to reach out to us before placing your order. Our team is here to assist you every step of the way.

Your delivery cost will vary depending on the size, weight and location of the products you choose to purchase as well as your delivery location of choice. Normally the larger the item, the more expensive delivery will be. Extremely large goods (ie. items requiring a two man lift) will also incur higher delivery rates.

As we use couriers to deliver all parcels, products cannot be delivered to an unattended address. The courier, in most cases will not require a signature from an occupant at the specified delivery address. If no one is available to collect the parcel, it may be re-directed to the nearest courier depot. You will then be responsible for collecting the parcel from that depot or paying an additional charge for re-delivery.

PowerMowers recommends all deliveries be shipped to a location that is attended during business hours, whether that is a home, work or other address, to minimise any re-delivery delays and/or fees.

You may incur additional delivery fees or freight charges within the checkout, (in excess of the fees and charges specified above) for:

- Large quantity or bulk orders

- Express or urgent deliveries

- Non-stock and/or bespoke items

- If an item is returned to the sender due to incorrect delivery address provided by the customer (case-by-case basis)

At checkout, you will be notified of shipping costs for your approval, these are calculated automatically by the site in accordance with our courier companies' freight charges via a courier aggregation application. Bulky items are those with either a high weight or large cubic volume. Products are allocated as bulky as determined by the shipping methods of our courier companies.

In the event that the calculated shipping cost is deemed inaccurate or unjust, we reserve the right to request a revised payment or to cancel the order at our discretion.

Returns Policy

Ensuring your satisfaction is our primary goal and utmost priority. Upon receiving your delivery, please inspect it promptly. Notify us immediately if any issues arise. In the event of receiving a damaged item, it is crucial to inform us within 48 hours of receipt.

NOTE: A restocking fee of 5% may apply for refunded returns.

If you decide to return an item due to a change of mind, you have a 30-days for a refund, excluding postage and handling. Initial responsibility for shipping and handling costs on returns lie with the customer. PowerMowers will only reimburse standard postage costs (express return fees excluded) if the item is covered by warranty purposes or if the item is incorrectly supplied. For a refund to be processed, the returned products must be in their original, unused condition and packaging. Kits/sets must be returned with all components included. Before making any alterations, cuts, or final fitments, purchasers are responsible for ensuring the correctness of the purchased item.

When returning products, please include the Order/Invoice Number. Products returned without reference of sale cannot be processed. We retain the right to deny a refund for returned items that have been fitted or are not in their original condition, including packaging.

FAQ

If you select the delivery option when you place an order, it may take between 2 - 5 business days (3 - 10 business days for regional areas) after dispatch for your order to be delivered to your nominated address. Courier deliveries are made during business hours, Monday to Friday only. The delivery of your order may be delayed if an incorrect or incomplete address is provided, personal or payment details require verification for fraud prevention purposes, a product is not stocked near to your nominated address or there are other factors outside of our control.

This estimated delivery date is provided to you as a guide only. Unfortunately, circumstances may change beyond PowerMowers' control which may lead to a delay in your order being delivered on time. PowerMowers will not accept liability for any delay in procuring the ordered goods that is beyond reasonable control (ie. unavailable stock).

We will do our best to ensure that you are notified whether a product is available in your selected store at the time you place an order. However, if for any reason your product is not available or your order exceeds the maximum allowable quantity, we will contact you using the details you entered when you placed the order and offer an alternative to you. If you select the delivery option when you place an order, and your order is larger than one product, we may withhold your products until we are able to dispatch all item together.

If a particular product is in high demand we may need to supply the product from outside of our standard delivery network. This can cause delays in dispatch if orders are directed to regional locations etc.

If your order is not received within an expected delivery period please contact our Customer Support Team. Begin an Inquiry Form submission, send us an email or give us a call (phone line response times may vary depending on time of day & season). We will generally respond to online order complication matters within 24 hours.

We are pleased to accommodate international orders. To ensure we meet your needs effectively, please follow below steps:

1 - Begin an Inquiry Form submission, send us an email or give us a call (phone line response times may vary depending on time of day & season.

2 - Be sure to have all required information including parts description, product model numbers and/or serial codes present to ensure streamlined support. You may send us photos you've taken to assist with this.

Clearly outline your nominated delivery address

3 - Let us know a name and contact details of which we may reach you on if we're sourcing parts and seeking product availability for you.

Our team of experts will get to work! We'll get back to you as soon as we can with a detailed delivery quotation, estimated delivery times and all applicable fees.

Please be aware that international shipping costs and delivery times can vary based on the destination, order size, and weight. We aim to provide the most efficient and cost-effective shipping solutions for our international customers.

Delivery is available to any valid address across Australia (where a product is ordered through https://powermowers.com.au/ and the nominated address is located in Australia). If you select the delivery option when you place an order, you will be charged a flat rate delivery fee. However, if the cost to deliver the product to you significantly exceeds the delivery fee (for instance because you are located in a remote area or have placed a special order for large or heavy products), we may contact you to discuss alternative arrangements. This may include cancelling or modifying your order.

We provide an efficient delivery service available at your discretion. Due to the continuous weight changes and dimensions of large machinery please call to obtain a quote prior to purchase. Bulky deliveries such as engines will be delivered by our transport partners to a safe and easy to access location at the your nominated delivery address. For health & safety reasons in the majority of cases this will exclude delivery of the item up flights of stairs. Please have adequate assistance available to you following receipt of your delivery.

Should we have any issues delivering a large product to your nominated address, we'll contact you to further organise shipping terms.

Please consult our warranty page for detailed warranty clauses. If you have further questions that remain unanswered, you may begin an Inquiry Form submission, send us an email or give us a call (phone line response times may vary depending on time of day & season).

You can place an order at any time on our website at https://powermowers.com.au/ by logging into your account, or by creating a guest account. Please refer to our Privacy Policy for information concerning how we collect and use your personal information.

You will be able to collect your order during trading hours from our store. Once your order has been processed, you will receive an email confirmation with a date we expect your order to be ready for collection. We will do our best to ensure your order is ready by this date, however we may experience unexpected delays from time to time. If this occurs, we will contact you using the contact details you provide to us. It is helpful to have your order confirmation email available. If this information is not available when you collect your order, you will need to provide photo identification or details about your order (including your name and the products) to our store staff and they will locate your order for you.

Victa 42" Deck 724cc PXi Zero-Turn Mower 2692071

Victa 42" Fabricated Deck 724cc PXi Zero-Turn Mower 2692072

GREENWORKS 60V Pro Electric Zero Turn Mower with 8.0Ah Battery & Dual Rapid Charger Kit - 42" Cut 7400807AU - FREE REDEMPTION KIT

Victa 42" Deck 724cc PXi Zero-Turn Mower 2692071

Victa 42" Fabricated Deck 724cc PXi Zero-Turn Mower 2692072

GREENWORKS 60V Pro Electric Zero Turn Mower with 8.0Ah Battery & Dual Rapid Charger Kit - 42" Cut 7400807AU - FREE REDEMPTION KIT

Walbro WT-942-1/WT-943-1/WT-944-1/WT-946-1/WT-947 Spiral Metering Diaphragm Upgrade Kit K1-WYTA, K6-WYTA

Click & Collect OR In-store Pickup

Delivery Availability

Unbeatable savings Guarantee

Backed by In-House Experts

Premium Quality Fitment

Australia Wide Delivery

Unbeatable savings Guarantee

Backed by In-House Experts

Premium Quality Fitment

Australia Wide Delivery

Shipping

Returns Policy

Recently Viewed Products

Customer Reviews

Customer Reviews

Australia Wide Delivery

Unbeatable savings guarantee

Secure Payment Options

Hassle-free Returns

Your cart

trending

Popular Products

Victa 42" Deck 724cc PXi Zero-Turn Mower 2692071

Victa 42" Fabricated Deck 724cc PXi Zero-Turn Mower 2692072

GREENWORKS 60V Pro Electric Zero Turn Mower with 8.0Ah Battery & Dual Rapid Charger Kit - 42" Cut 7400807AU - FREE REDEMPTION KIT

Customer Login

trending

Popular Products

Victa 42" Deck 724cc PXi Zero-Turn Mower 2692071

Victa 42" Fabricated Deck 724cc PXi Zero-Turn Mower 2692072

GREENWORKS 60V Pro Electric Zero Turn Mower with 8.0Ah Battery & Dual Rapid Charger Kit - 42" Cut 7400807AU - FREE REDEMPTION KIT

Walbro WT-942-1/WT-943-1/WT-944-1/WT-946-1/WT-947 Spiral Metering Diaphragm Upgrade Kit K1-WYTA, K6-WYTA

Click & Collect OR In-store Pickup

Delivery Availability

Unbeatable savings Guarantee

Backed by In-House Experts

Premium Quality Fitment

Australia Wide Delivery

Unbeatable savings Guarantee

Backed by In-House Experts

Premium Quality Fitment

Australia Wide Delivery

Shipping

Returns Policy

Recently Viewed Products

Customer Reviews

Customer Reviews

Australia Wide Delivery

Unbeatable savings guarantee

Secure Payment Options

Hassle-free Returns

Your cart

JOIN OUR MAILING LIST
