Replaces OEM: Walbro K2-WYTA
Standard Pack: 1
Suits models:
- WTE-1
- WTE-6
- WTE-11
- WTE-13
- WTE-19
- WTE-21
- WTEA-2
- WTEA-3
- WTEA-4
- WTEA-5
- WTEA-6
- WTEA-7
- WTEA-8
- WTEA-9
- WTEA-10-1
Specifications:

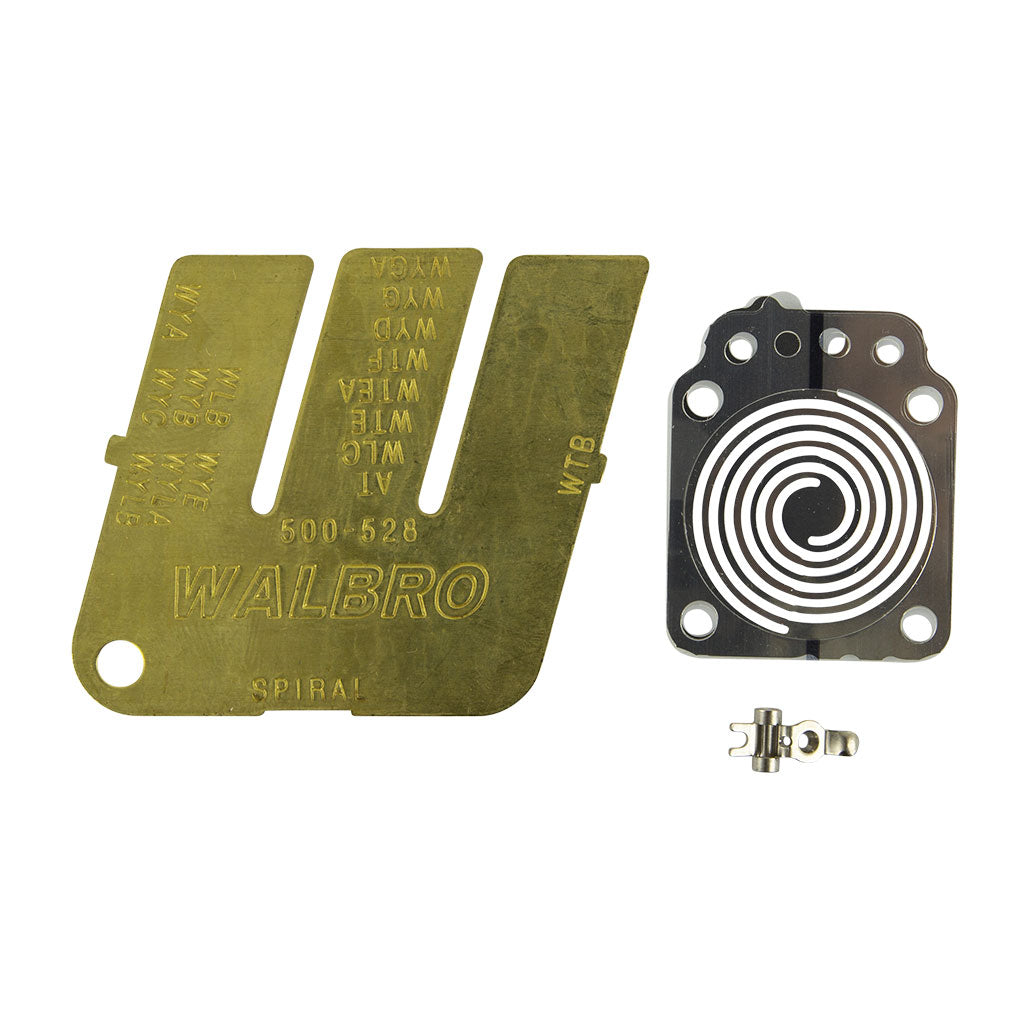

- Genuine Walbro K2-WYTA Spiral Metering Diaphragm Upgrade Kit
- Converts carburettor from traditional rubber metering diaphragm to Walbro ethanol-compliant spiral metering diaphragm
- Spiral metering diaphragm is impervious to the effects of ethanol and additives in modern fuels and does not deteriorate with age
- Includes a membrane with a high grade teflon film in the centre and a stainless steel spiral diaphragm
- All parts (except the metering lever) are contained in an installation sleeve to make assembly quicker and easier
- Currently over 500 Walbro diaphragm carburettor model numbers can be upgraded to use the new spiral diaphragm kits
- Warning: parts are extremely durable inside the carburettor but fragile to handle—do not bend or crease the membrane when handling or during assembly
- Metering lever must be replaced with the new one supplied; please reuse the old metering lever pin
- Adjustment of metering lever height using the brass 'W' gauge (part number OMK500-528) included in the kit
- Fitting instructions: remove metering cover, old diaphragm and gasket; remove metering lever and replace with new one reusing old metering lever pin; reset metering lever height with updated brass 'W' gauge; install new gaskets and diaphragm onto the carburettor while still contained inside installation sleeve (install with word 'TOP' facing up); install metering cover; install four screws starting by one turn each; remove clip, pull installation sleeve out, then torque screws down normally
- Footnote: when comparing fitment application info to carburetor model, disregard letters (A, B, C) and -1 at end of model number
